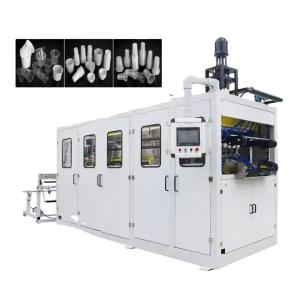

PS PET PP PVC Plastic Cup Making Machine 15-30 Times/Min Fully Automatic

Contact Now
Hengxing Blister Machinery (Shenzhen) Co., Ltd
Visit Website
City:shenzhen
Province/State:guangdong
Country/Region:china
Contact Person:MrBob Wu
Contact Now

PS PET PP PVC Plastic Cup Making Machine 15-30 Times/Min Fully Automatic

Ask Latest Price
Video Channel
Brand Name :HengXing
Model Number :HX-760B
Certification :CE
Place of Origin :China
MOQ :1 pcs
Price :USD 13999$ (deposit)
Payment Terms :L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :1 pcs
Delivery Time :45 work days
Packaging Details :wooden case
plastic type :PVC, PS, PP, PET
key selling points :2000
core components :Engine, Bearing, Gearbox, motor
product type :Plastic Cup
dimension(l*w*h) :4.3X1.7X2.8m
voltage :380V/3P/50HZ
forming width (mm) :320 mm
forming length (mm) :160 mm
weight (t) :8T
max.forming height(mm) :180 mm
heating power (kw) :35 kW
production speed(cycles/m :25.0-45.0cycles/min, 30.0cycles/min
power(kw) :50 kW
Forming Area :760*320mm
Air Pressure :0.6~0.8Mpa
Driving Method :Cam + servo motor
Sheet Width :W=760mm (adjustable)
sheet thickness :0.2-2.5mm
Selling Units :Single item
more
Contact Now

Add to Cart

Find Similar Videos
View Product Description

HX Fully Automatic Cup Making Machine For Yogurt Cups & Lids 0.3-2mm 6.5-100mm Water Factory Featuring PS PET PP PVC Plastic Types

Product Description:

This fully automatic cup-making machine adopts an advanced cam-driven mold system, which operates accurately and efficiently, with a high-speed productivity of 15-30 times per minute. This means that within a unit of time, it can continuously output a large number of finished products, greatly improving production efficiency and providing strong support for the enterprise's capacity enhancement.


In terms of material compatibility, it demonstrates extraordinary adaptability. It can easily handle materials such as PP, PS, PET, PVC, or PLA. This wide compatibility enables the cup-making machine to meet the needs of different customers, whether it is producing disposable water cups, beverage cups, or other types of cups; it can be handled with ease.


Its heating device is extremely advanced, equipped with an infrared ceramic heater that can quickly and evenly transfer heat to the mold. At the same time, combined with PID temperature control, it functions as an accurate temperature regulator to monitor and adjust the temperature in real-time, ensuring the stability and accuracy of the heating process. This can avoid product quality issues caused by temperature fluctuations, resulting in high-quality cups with exquisite appearance that meet high standards.
The design of multi-cavity molds is a major highlight of this cup-making machine. It can produce multiple products simultaneously. This design greatly improves production efficiency, reduces production costs, and brings higher economic benefits to the enterprise.


More importantly, this fully automatic cup-making machine has passed CE certification. It also provides buyers with market access guarantees.
